Controllers

Check your controller

MIDI control and audio output are separate connections. A controller may send button presses while its Master/Cue jacks are unconfigured, or supply audio while no Mapping is detected. The on-screen Performance controls continue to work without a controller.

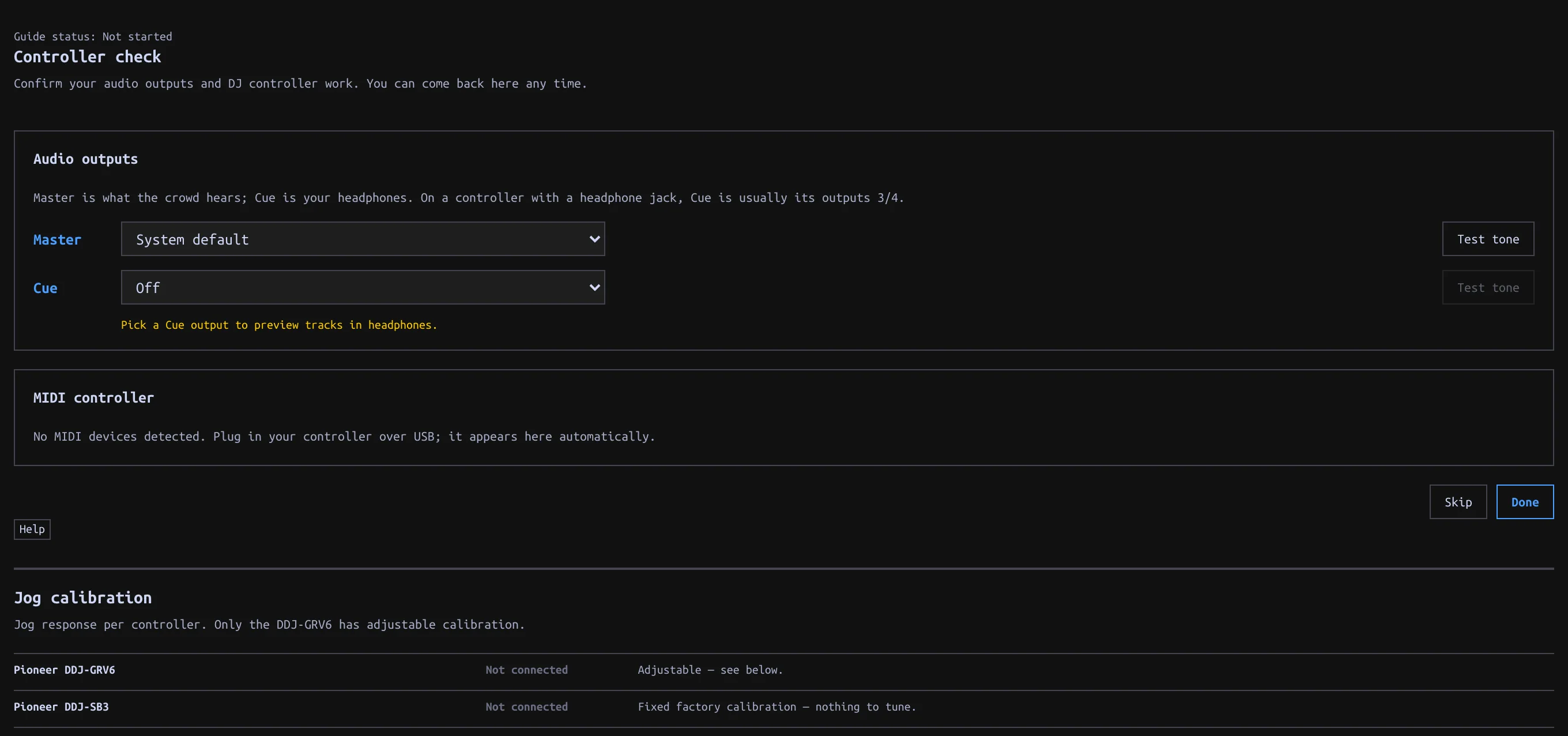

1. Plug in the controller over USB and open Settings → Controllers → Controller check. You can also launch this guide alone from Settings → Help → Setup.
2. Choose Master and Cue outputs and use each Test tone button. Pick explicit output pairs when offered; listen to confirm which pair reaches speakers and which reaches headphones. Do not assume the pair order from the controller's name.
3. Under MIDI controller, find the device and check that it shows a Mapping.
4. Press a button or move a control. The guide displays its mapped action and counts the controls checked.
5. Click Done, or Skip to return later.

Supported models are the Pioneer DDJ-GRV6, Pioneer DDJ-SB3, and Hercules DJControl Inpulse 300 MK2. No Mapping means detection succeeded but that device's controls cannot operate manadj. An Unmapped control message on a supported model means that particular control has no assigned action.

If no device appears, check its connection. Allow MIDI access if prompted; a browser reporting MIDI unavailable cannot run this check. MIDI detection and audio routing are separate: a responding button does not confirm the headphone output. See audio outputs for output checks.

The check observes real controller input; mapped controls still operate the app while you test them. The screenshot above is the real app without connected hardware; it does not demonstrate MIDI receipt or verified physical outputs.

How a Mapping relates to the app

A Mapping translates device messages directly to Deck/Mixer actions. It is not a second copy of the keyboard layout: hardware controls can address a Deck while you browse another view. The printed label on a device does not guarantee the assigned manadj action. Check the guide's reported action for the control you moved.

Model	Deck/FX behavior	Verification
AlphaTheta/Pioneer DDJ-GRV6	Four mixer channels; each deck side switches between two Decks. Its CH SELECT, SELECT, BEAT, ON/OFF and LEVEL/DEPTH control the one shared Beat FX section.	Mapping hardware-verified; check your own audio pair order.
Hercules DJControl Inpulse 300 MK2	Two Decks; separate Master and Cue level controls. Its FX section is not mapped.	Mostly hardware-verified, with exceptions in the mapping guide.
Pioneer DDJ-SB3	Each side switches both its Deck controls and mixer channel between Decks. Side FX buttons share one section, rather than providing two independent processors.	Mapping exists; not hardware-verified.

Absolute faders/knobs normally use TAKEOVER: after a view or layer changes a value, a mismatched physical control waits until it crosses the on-screen value before taking over. This avoids an abrupt jump; switch TAKEOVER off in the Performance strip only if you want immediate movement. Layer switches re-arm pickup on layered controllers. A controller can focus C/D independently of the keyboard's [ / ] focus switches.

The GRV6's own Master/headphone gain and mix controls are handled in hardware, not MIDI-mapped to the app. For GRV6/SB3 audio, explicitly choose and test the available output pairs; only the Inpulse's 1/2 Master and 3/4 Cue defaults are hardware-verified in the app. See audio routing and Beat FX mapping.

Tune jog response

Only the DDJ-GRV6 has adjustable jog calibration. Open Settings → Controllers → Jog calibration, or Calibrate jog wheels in Controller check when a GRV6 is detected.

1. Load a track in Performance and test a small rim movement during playback.
2. Adjust Playback bend gain for sensitivity and Playback bend clamp for the maximum bend. Playback decay window controls how the bend settles.
3. Pause and compare Paused bare rim with Paused touch platter. Adjust the response that feels too fast or slow.
4. Test Shift seeking before changing Shift fast-seek base or its acceleration controls.

Changes apply live and are saved. Use Reset jog defaults to start again. The SB3 uses fixed factory calibration; the Inpulse needs no calibration here. Computer-mouse jog controls are separate, under Settings → Keyboard + mouse → Mouse jog.

When a control does nothing

Symptom	Check
No device in Controller check	Reconnect USB, allow MIDI access, and verify the device is not held by another app. MIDI unavailable in this browser cannot be fixed by selecting an audio output.
Device present, No Mapping	This model is detected but its controls have no registered Mapping. Use on-screen or keyboard controls.
Unmapped control	Only that message/control is unsupported; test another binding. A controller's printed label is not a binding promise.
Mapped knob/fader seems stuck	Bring it through the app value to pick it up with TAKEOVER enabled. Recheck after changing the hardware Deck layer.
Buttons respond, headphones silent	Controller MIDI is working; check CUE output, PFL, headphone level and CUE MIX separately.
